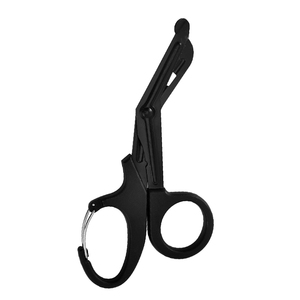

Industrial Grade Black Handle Non Stick Multifunctional Medical Scissors for Nurses Patent Bandage Shears
6 Pc/set Heat Activated Nickel Titanium HS Blue Files Root Canal Shaping Files Anti Fatigue Endodontic Tools

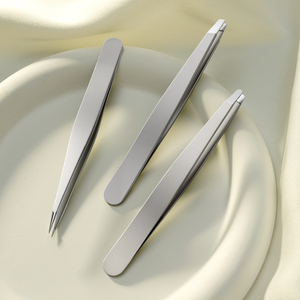

Ultra-slim Slanted Tweezers Professional Stainless Steel Eyebrow Facial Hair Removal Tweezers

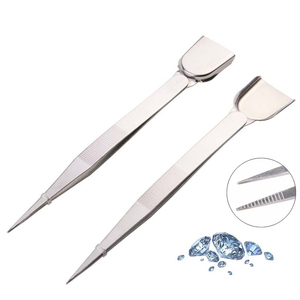

High Quality Stainless Steel Slotted Tweezers For Gemstones Diamonds Goldsmith's Loose Diamond Shovel

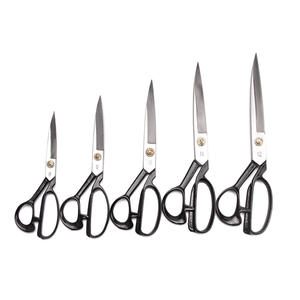

Ultra Sharp Professional Fabric Scissors Sewing Tailor Scissors Heavy Duty Cutting Tool Custom Logo
Custom 3pcs 4pcs 5pcs Stainless Steel Black Eyelash Trimmer Eyebrow Tweezers Set With Scissors
Technical Metallurgy & Manufacturing Architecture of Custom OEM Bone Holding Forceps
In modern traumatology and orthopedic reconstructive surgery, Bone Holding Forceps serve as the critical mechanical bridge between the surgeon's tactile control and rigid fracture fixation. Whether securing long bone diaphyseal fractures (such as femur or tibia osteotomies) or stabilizing intricate periarticular fragments, these instruments must exert sustained compressive forces without causing cortical crushing, mechanical slippage, or structural deformation.
As a premier custom OEM bone holding forceps manufacturer and global exporter based in Sialkot, Pakistan, SIAL Surgical integrates traditional forging expertise with advanced 5-axis CNC machining, vacuum heat treatment, and stringent metallurgical passivations. This white paper serves as an authoritative guide for B2B procurement managers, medical device OEM distributors, and orthopedic brand owners seeking contract manufacturing excellence.
1. Surgical Stainless Steel Grade Selection Matrix
The operational longevity and mechanical integrity of bone reduction pliers and bone holding forceps (such as Kern, Lowman, Verbrugge, and Lane patterns) rely entirely on raw material selection. We utilize certified martensitic and austenitic surgical stainless steel formulations compliant with ISO 7153-1 and ASTM F899 standards:
- AISI 420 (X20Cr13 / 1.4021): The industry benchmark for high-tensile structural arms and box-lock joints. Offers superior yield strength post-tempering and optimal hardness ranging between 48–52 HRC.
- AISI 410 (X12Cr13 / 1.4006): Selected for flexible tension springs, threaded ratchet bars, and speed-lock mechanisms requiring resilience and high fatigue endurance under repeated flexing.
- AISI 316L (Surgical Grade Austenitic): Employed in specialized non-magnetic custom orthopedic assemblies or component sleeves where maximum corrosion immunity takes precedence over extreme surface hardness.
- Custom Titanium Alloys (Ti-6Al-4V ELI): Available for lightweight, radiolucent, or MRI-compatible OEM custom bone reduction forceps requirements.
OEM Design Engineering & Anatomical Modification Services
We transform engineering CAD models or physical prototype samples into mass-produced, hospital-compliant surgical instruments tailored to your exact brand specifications.
Anatomical Jaw Geometry
Custom tooth serrations, 2x3 or 3x4 interlocking prongs, self-centering curved jaws, and soft-tissue protective tips engineered specifically for small animal veterinary or large human bone stabilization.
Locking Mechanism Engineering
Precision execution of AO-style Speed-Locks, threaded spin-lock nuts, classic multi-stage ratchets, and quick-release spring locks to optimize intraoperative holding efficiency.
Private Labeling & Branding
Fiber-laser etching for custom brand logos, part numbering, batch code tracking, GS1-compliant DataMatrix UDI (Unique Device Identification) code placement.
Manufacturing Rigor: From Drop Forging to Electrochemical Passivation
Precision manufacturing of bone holding forceps requires strict control over physical geometry and microstructural state. Substandard manufacturing often causes alignment failures, ratchet slippage, or localized pitting corrosion after autoclave cycles.
Step 1: Hot Drop Forging & Grain Alignment
Raw stainless steel billets undergo induction heating followed by high-tonnage closed-die drop forging. This process aligns the crystalline grain flow parallel to the contours of the forceps arms, maximizing structural toughness against bending moments exerted during reduction of difficult fractures.
Step 2: CNC Milling & Wire EDM Machining
Using computerized multi-axis CNC milling machines and Wire Electrical Discharge Machining (EDM), the box locks, male-female joints, and ratchet teeth are shaped to tolerance levels within ±0.01 mm. This ensures zero lateral play in the joint assembly, maintaining exact jaw alignment when under extreme force.
Step 3: Vacuum Heat Treatment & Controlled Tempering
Instruments are heat-treated in computer-controlled vacuum furnaces to prevent surface decarburization. Rapid quenching followed by double tempering achieves a homogeneous martensitic grain structure. Hardness levels are verified using Rockwell C (HRC) testers to ensure optimal spring retention without micro-brittleness.
Step 4: Electropolishing & ASTM A967 Passivation
To resist harsh chemical sterilizing agents and saline exposure, all instruments undergo chemical passivation per ASTM A967 standards. The process dissolves free iron particles from the surface, forming an impenetrable, self-healing Chromium Oxide (Cr₂O₃) passive layer.
Comparative Matrix: Commercial Grade vs SIAL Surgical Medical OEM Grade
| Evaluation Parameter | Commercial / Standard Grade | SIAL Surgical Medical OEM Grade |
|---|---|---|
| Raw Material Origin | Uncertified Scrap/Recycled Steel | Certified AISI 420 / 410 Mill Billets (ISO 7153-1) |
| Joint Machining Tolerance | Manual Filing (±0.15 mm play) | 5-Axis CNC & Wire-EDM (±0.01 mm tolerance) |
| Heat Treatment Environment | Open Flame / Atmosphere Furnace | Computerized Vacuum Heat Treatment Furnace |
| Corrosion Protection | Basic Mechanical Polish Only | Full Passivation (ASTM A967) + Electropolish |
| Autoclavability Guarantee | Risk of Staining within 10-20 cycles | 100+ Autoclave Cycles (134°C / 2.1 bar) Compliant |
| Traceability & Marking | None or Ink Stamping | Permanent Laser Engraved UDI / DataMatrix / Serial |
Future Procurement & Technological Trends in Orthopedic Forceps (2025–2030)
The global orthopedic surgical instrument market is undergoing rapid evolution driven by minimally invasive surgical (MIS) techniques, robotic-assisted orthopedics, and heightened regulatory scrutiny (EU MDR 2017/745 & US FDA 21 CFR Part 820). Medical device procurement officers must align with manufacturers equipped to adapt to modern trends:
1. Minimally Invasive MIS Designs
Surgical trends favor low-profile, percutaneous bone holding forceps equipped with slender curved shanks and narrow jaws that allow precise fracture reduction through minimal incision ports without excessive soft-tissue stripping.
2. Integrated Speed-Lock Ratchets
Traditional multi-stage finger ratchets are rapidly being replaced by tactile Speed-Lock systems. Surgeons demand one-handed spin-nut locking mechanisms that permit micro-calibrated clamping pressure without sudden release risks.
3. Matte Anti-Glare Surface Treatments
With modern operating theaters utilizing high-intensity LED surgical lights and video endoscopes, high-mirror polish finishes are being phased out in favor of micro-bead satin matte or non-reflective black PVD (Physical Vapor Deposition) coatings.
Frequently Asked Questions for B2B Importers & OEM Buyers
Direct answers to critical sourcing, compliance, and ordering queries for medical instrument distributors worldwide.
Why Partner with SIAL Surgical: Sialkot Heritage & Global Manufacturing Scale
Located in Sialkot, Pakistan—the world's historic hub for precision surgical manufacturing—SIAL Surgical has earned a global reputation since 1995 for combining generations of hand craftsmanship with computerized manufacturing control systems.
ISO 9001:2015 Quality System
Our operational ecosystem enforces batch-level traceability from raw material mill certificates down to individual laser-engraved serial codes. Every production step follows strict SOPs.
100% Piece-by-Piece Inspection
Unlike automated mass producers who inspect by random sampling, SIAL Surgical subjects every single instrument to 100% final quality check—evaluating alignment, spring tension, ratchet locks, and surface perfection.
Complete Private Label Packaging
We deliver ready-for-shelf solutions: heat-sealed pouches, sterile packaging sleeves, custom printed inner boxes, and master export cartons bearing your brand graphics and barcoding.
Partner with a Trusted OEM Bone Holding Forceps Manufacturer
Whether you require standard catalog bone holding forceps, custom CAD modifications, or full OEM private labeling for your brand, our engineering team is ready to assist.
